X.509 v3 Certificates

The first thing you need to know about certificates, is that there's no such thing as an:

  • SSL Certificate
  • TLS Certificate
  • HTTPS Certificate

There's only 1 thing, an X.509 v3 Certificate, and it's specification is discussed in RFC 5280.

Basic Fields

Here are a few basic fields that will allow you to understand what makes an X.509 v3 Certificate:

Version Number

This field describes the version of the encoded certificate. When extensions are used, as expected in this profile, version MUST be 3 (value is 2). If no extensions are present, but a UniqueIdentifier is present, the version SHOULD be 2 (value is 1); however, the version MAY be 3. If only basic fields are present, the version SHOULD be 1 (the value is omitted from the certificate as the default value); however, the version MAY be 2 or 3.

Serial Number

The serial number MUST be a positive integer assigned by the CA to each certificate. It MUST be unique for each certificate issued by a given CA (i.e., the issuer name and serial number identify a unique certificate). CAs MUST force the serialNumber to be a non-negative integer.

Given the uniqueness requirements above, serial numbers can be expected to contain long integers. Certificate users MUST be able to handle serialNumber values up to 20 octets. Conforming CAs MUST NOT use serialNumber values longer than 20 octets.

Signature Algorithm

The signatureAlgorithm field contains the identifier for the cryptographic algorithm used by the CA to sign this certificate. RFC3279, RFC4055, and RFC4491 list supported signature algorithms, but other signature algorithms MAY also be supported.

Issuer

The issuer field identifies the entity that has signed and issued the certificate. The issuer field MUST contain a non-empty distinguished name (DN). The issuer field is defined as the X.501 type Name X.501.

Standard sets of attributes have been defined in the X.500 series of specifications X.520. Implementations of this specification MUST be prepared to receive the following standard attribute types in issuer and subject (Section 4.1.2.6) names:

  • country,
  • organization,
  • organizational unit,
  • distinguished name qualifier,
  • state or province name,
  • common name (e.g., "Susan Housley"), and
  • serial number.

Country

The Country Name attribute type specifies a country. When used as a component of a directory name, it identifies the country in which the named object is physically located or with which it is associated in some other important way. An attribute value for country name is a string chosen from ISO 3166-1 alpha-2 or ISO 3166-3 alpha-2.

Organization

The Organization Name attribute type specifies an organization. When used as a component of a directory name, it identifies an organization with which the named object is affiliated.

An attribute value for OrganizationName is a string chosen by the organization (e.g., O = "Scottish Telecommunications plc"). Any variants should be associated with the named Organization as separate and alternative attribute values.

Organizational Unit

The Organizational Unit Name attribute type specifies an organizational unit. When used as a component of a directory name, it identifies an organizational unit with which the named object is affiliated.

The designated organizational unit is understood to be part of an organization designated by an organizationName attribute. It follows that if an Organizational Unit Name attribute is used in a directory name, it shall be associated with an organizationName attribute.

An attribute value for Organizational Unit Name is a string chosen by the organization of which it is part (e.g., OU = "Technology Division"). Note that the commonly used abbreviation "TD" would be a separate and alternative attribute value.

Distinguished Name Qualifier

The DN Qualifier attribute type specifies disambiguating information to add to the relative distinguished name of an entry. It is intended to be used for entries held in multiple DSAs which would otherwise have the same name, and that its value be the same in a given DSA for all entries to which this information has been added.

State or Province

The State or Province Name attribute type specifies a state or province. When used as a component of a directory name, it identifies a geographical subdivision in which the named object is physically located or with which it is associated in some other important way.

An attribute value for State or Province Name is a string, e.g., S = "Ohio".

Common Name

The Common Name attribute type specifies an identifier of an object. A Common Name is not a directory name; it is a (possibly ambiguous) name by which the object is commonly known in some limited scope (such as an organization) and conforms to the naming conventions of the country or culture with which it is associated.

An attribute value for common name is a string chosen either by the person or organization it describes or the organization responsible for the object it describes for devices and application entities. For example, a typical name of a person in an English-speaking country comprises a personal title (e.g., Mr., Ms., Rd, Professor, Sir, Lord), a first name, middle name(s), last name, generation qualifier (if any, e.g., Jr.) and decorations and awards (if any, e.g., QC).

Validity

The certificate validity period is the time interval during which the CA warrants that it will maintain information about the status of the certificate. The field is represented as a SEQUENCE of two dates: the date on which the certificate validity period begins (notBefore) and the date on which the certificate validity period ends (notAfter). Both notBefore and notAfter may be encoded as UTCTime or GeneralizedTime.

Subject

The subject field identifies the entity associated with the public key stored in the subject public key field. The subject name MAY be carried in the subject field and/or the subjectAltName extension. If the subject is a CA (e.g., the basic constraints extension, as discussed in Section 4.2.1.9 , is present and the value of cA is TRUE), then the subject field MUST be populated with a non-empty distinguished name matching the contents of the issuer field (Section 4.1.2.4 in all certificates issued by the subject CA. If the subject is a CRL issuer (e.g., the key usage extension, as discussed in Section 4.2.1.3 , is present and the value of cRLSign is TRUE),then the subject field MUST be populated with a non-empty distinguished name matching the contents of the issuer field (Section 5.1.2.3) in all CRLs issued by the subject CRL issuer. If subject naming information is present only in the subjectAltName extension (e.g., a key bound only to an email address or URI), then the subject name MUST be an empty sequence and the subjectAltName extension MUST be critical.

Where it is non-empty, the subject field MUST contain an X.500 distinguished name (DN). The DN MUST be unique for each subject entity certified by the one CA as defined by the issuer field. A CA MAY issue more than one certificate with the same DN to the same subject entity.

Subject Public Key Info

This field is used to carry the public key and identify the algorithm with which the key is used (e.g., RSA, DSA, or Diffie-Hellman). The algorithm is identified using the AlgorithmIdentifier structure specified in Section 4.1.1.2. The object identifiers for the supported algorithms and the methods for encoding the public key materials (public key and parameters) are specified in RFC3279, RFC4055, and RFC4491.

Extensions

This field MUST only appear if the version is 3 ( Section 4.1.2.1). If present, this field is a SEQUENCE of one or more certificate extensions. The format and content of certificate extensions in the Internet PKI are defined in Section 4.2.

Where did this originate?

This specification actually has its roots in an older publication: Blue Book Volume VIII - Fascicle VIII.8

Originally it seems certificates were created to solve "directory" type problems, with the intention that if we had a directory of objects (humans, computers, printers, etc.) we could use digital certificates to establish a hierarchy of those objects, and use the certificates to establish authenticity between objects.

What is a Root Certificate Authority (CA)?

It's simply an entity that issues digital certificates.

What is an Intermediate CA?

It's child certificate of the root certificate, which can be used to issue additional Intermediate CA certificates or End-entity certificates.

What is an End-entity certificate?

The End-entity is the last certificate issued to an actual Object. In most case this certificate represents a Server or a Client, but remember, it can truly be almost anything.

Why do we need Intermediate CAs?

By using Intermediate CAs we're able to keep the total number of Root Certificates that we trust to a relatively low number. In the event that an Intermediate certificate expires, or is compromised, it's much easier to replace the Intermediate certificate with a new one, then update the list of trusted CAs.

What's a Certificate Chain of Trust?

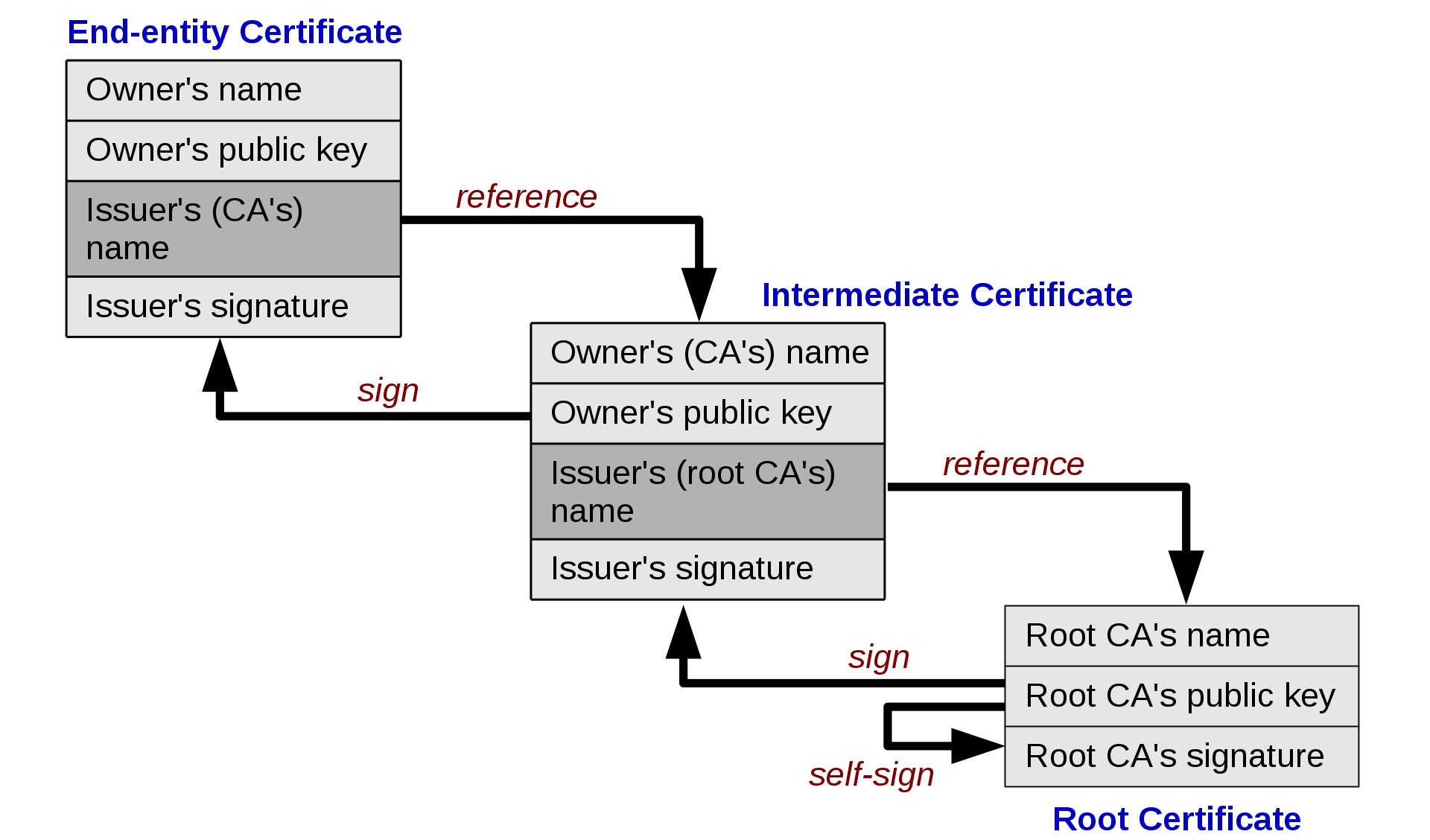

In order to for your client to trust the authenticity of the final end-entity certificate your server uses, we must be able to establish links from the end-entity certificate all the way back to the Root certificate:

certificate chain of trust

Those links are what make up the "Chain of Trust", and enable us to have a very flexible certificate hierarchy which can sometimes prove useful.

A Practical Example with Amazon RDS Certificates

Let us use the Amazon RDS certificates as an example.

Amazon RDS has 1 Root certificate, and 1 Intermediate certificate per region. It's recommended that by default you deploy and trust the 1 Root certificate. However, when Amazon issues your database instance an End-entity certificate, it will be issued from the regional Intermediate certificate, which was created by the Root certificate.

By using an Intermediate certificate per region Amazon can more easily manage expiration, revocation, and compromise because the event(s) will now only happen at the regional level. This means if the us-east-1 RDS certificate needs to be replaced, only us-east-1 RDS instances will be affected. Additionally, because we deployed and trust the Root certificate, the new, and all future, certificates created by new Intermediate certificates will typically continue to be trusted.
